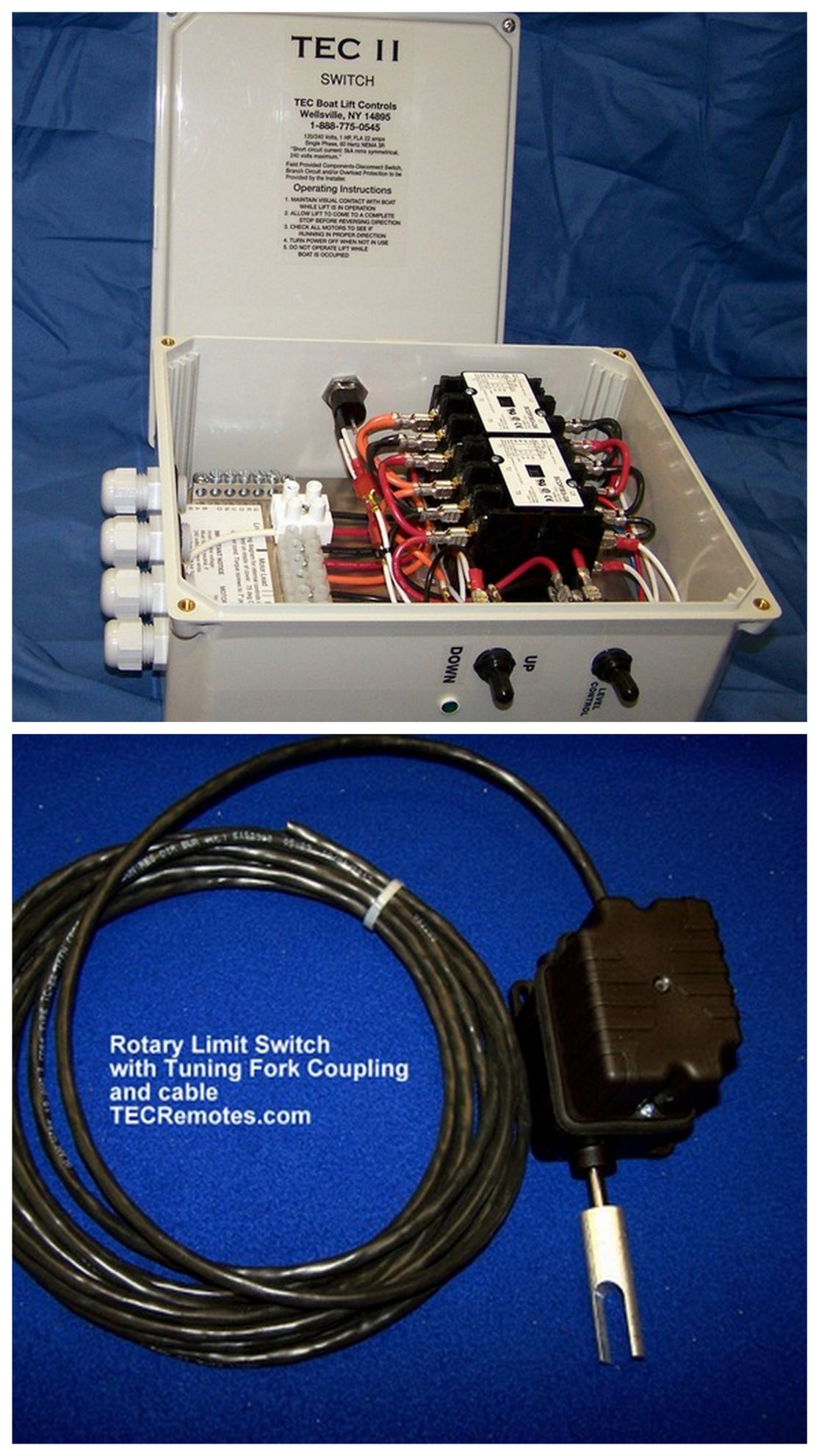

TEC II Switch - Remoteless with Rotary Limit Switch
 |
|
Click to enlarge image(s)
|
"Designed to Lift--Built to Last"
"First of it's kind" Manual or "Drum" switch replacement
Features:
- Two motor control with 30 Amp contactors
- Maintain up/off/down switch on box. No transmitter
- Motor level control switch (manual)
- Limit with tuning fork, 25 ft. of wire (59:1 gear ratio)
- Limit switch (included) provides end of travel Stop
- Must have limit switch hooked up to operate
- Wired for 120v or 240v AC with neutral
- On/off security key switch
- Poly enclosure is 10 x 8 x 5 inches
- Special Order: 85:1 gear ratio limit switch
- Special Order: 40 Amp contactors
- Special Order: Single motor control
