Hand Held Remote Programming Instructions

2015 Newest Style Waterproof Transmitter Programming


Learning Remote Codes or Syncronizing a Transmitter to a Receiver:
Remove the cover from the main control unit.
The Receiver is located in the lower right hand corner
of the control enclosure.
Press and Hold the Learn button on the Receiver for (1) One Second
(release the learn button), the Red Learn-LED will Light.
Then Press and Hold any button (Up, Down, Stop, or Light)
which you choose on the Remote and
Hold until the Learn-LED Goes Out
(only around 1+ Seconds).
All buttons and codes have been Learned
and the Remote is Fully Functional.

Test (within 5 seconds) that either the Up or Down Button is
operating to Validate the code was Learned.
If you fail to validate quick enough you'll need to program again.
Repeat the above steps for any additional Remotes
you wish to program to your TEC Unit.
(Up to 8 Remotes can be Programmed to a TEC Unit)


Clearing Instructions (If Necessary).
Press and continuously hold the learn button until the Led light
flashes several times and goes out.
This clears all hand held transmitters to this receiver.

Test the Up, Down, Stop, and Light buttons on the hand held transmitter.
There should not be any response after clearing the codes.
Follow the programming instructions above
to now connect each desired transmitter.


**Please Note there is a 3 Second Safety Delay When
Switching Directions Between Up and Down**


======================================================

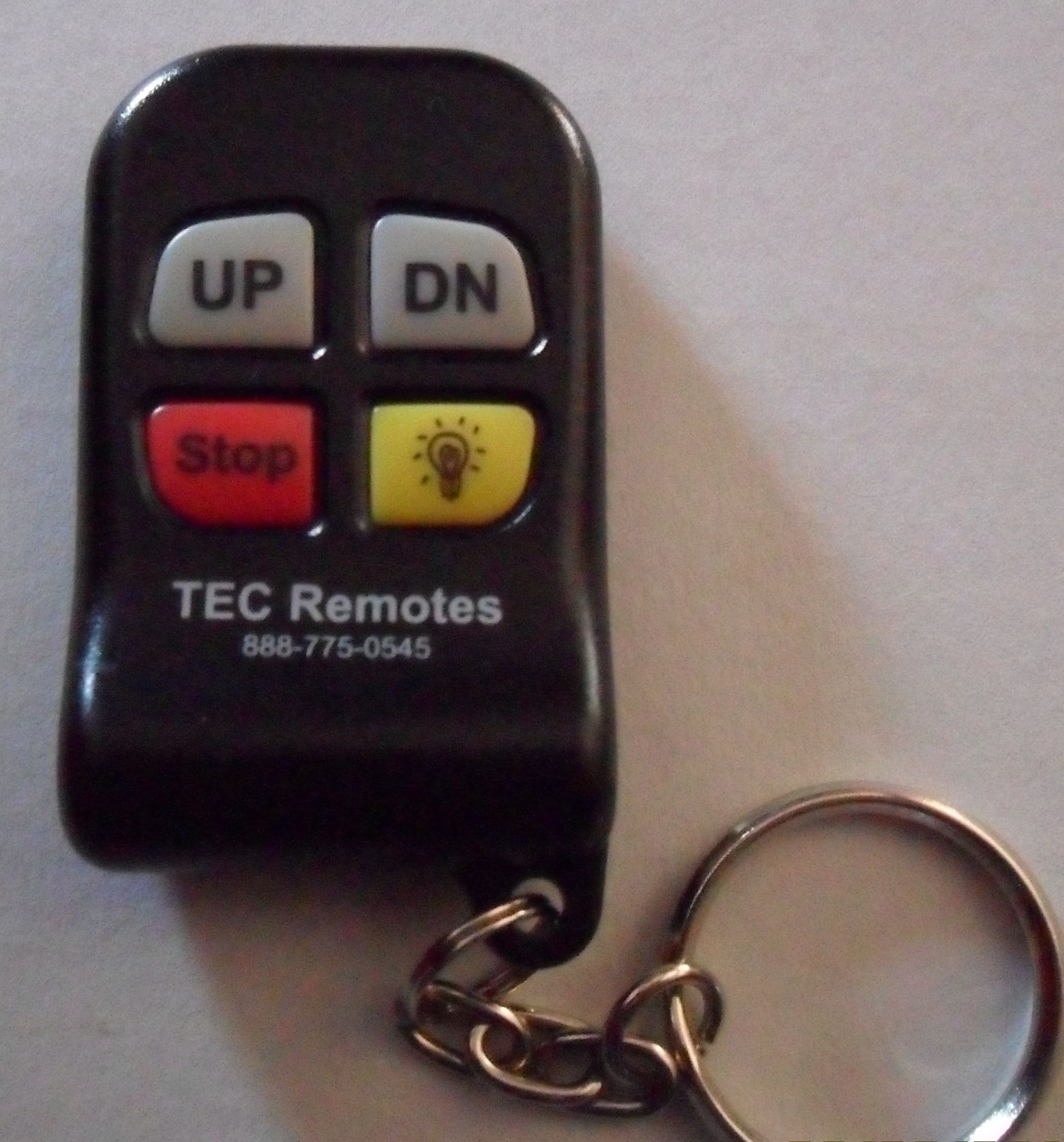

New Style Water Resistant Transmitter Programming


Remove the cover from the main control unit.
The receiver is located in the lower right hand corner
of the control enclosure.
[Note: The LED lights are located on the underside
of the radio receiver.]

Programming Instructions
There are either 2 or 5 buttons on the receiver marked
Mode Switch #1, #2, #3, #4, #5 (2 buttons on Non A/C units & 5 on A/C units)
DO NOT Press Mode Switch # 5 as this one
changes the operation of the Receiver.

1.  With the power to the unit turned on, press and hold
Mode Switch #1 for 6 seconds; release.
2.  Press the Up button on the hand held transmitter
and hold for 3 seconds.

3.  Press and hold Mode Switch #2 for 6 seconds; release.
4.  Press the Down button on the hand held transmitter
and hold for 3 seconds.

** If you're Unit is not an Auto stop Unit stop after step #4

5. Press and hold Mode Switch #3 For 6 seconds; release.
6. Press the Stop button on the hand held transmitter
and hold for 3 seconds.

* If you’re A/C unit does not have the light option
or only 3 Buttons stop after step #6


7. *(If your unit is equipped with the light option)
Press and hold Mode Switch #4 for 6 seconds; release.
8. Press the Yellow Light button on the hand held
transmitter and hold for 3 seconds.


________________________________
Code Clearing Process (If Necessary)
With the power turned on:

  1. Press and hold Mode Switch 1 for 7 Seconds,
    release Mode Switch 1 and Press and hold Mode Switch 1
    again for 7 Seconds, Mode Switch 1 or Up is now cleared.
  2. Now Press and hold Mode Switch 2 for 7 Seconds,
    release Mode Switch 2 and Press and hold Mode Switch 2
    again for 7 Seconds, Mode Switch 2 or Down is now Cleared.
  3. Now Press and hold Mode Switch 3 for 7 Seconds,
    release Mode Switch 3 and Press and hold Mode Switch 3
    again for 7 Seconds, Mode Switch 3 or Stop is now Cleared.
  4. Now Press and hold Mode Switch 4 for 7 Seconds,
    release Mode Switch 4 and Press and hold Mode Switch 4
    again for 7 Seconds, Mode Switch 4 or Light is now Cleared.
Test the Up, Down, Stop, and Light buttons
on the hand held transmitter.
There should not be any response after clearing the mode switches.
Proceed to programming instructions above

===================================================

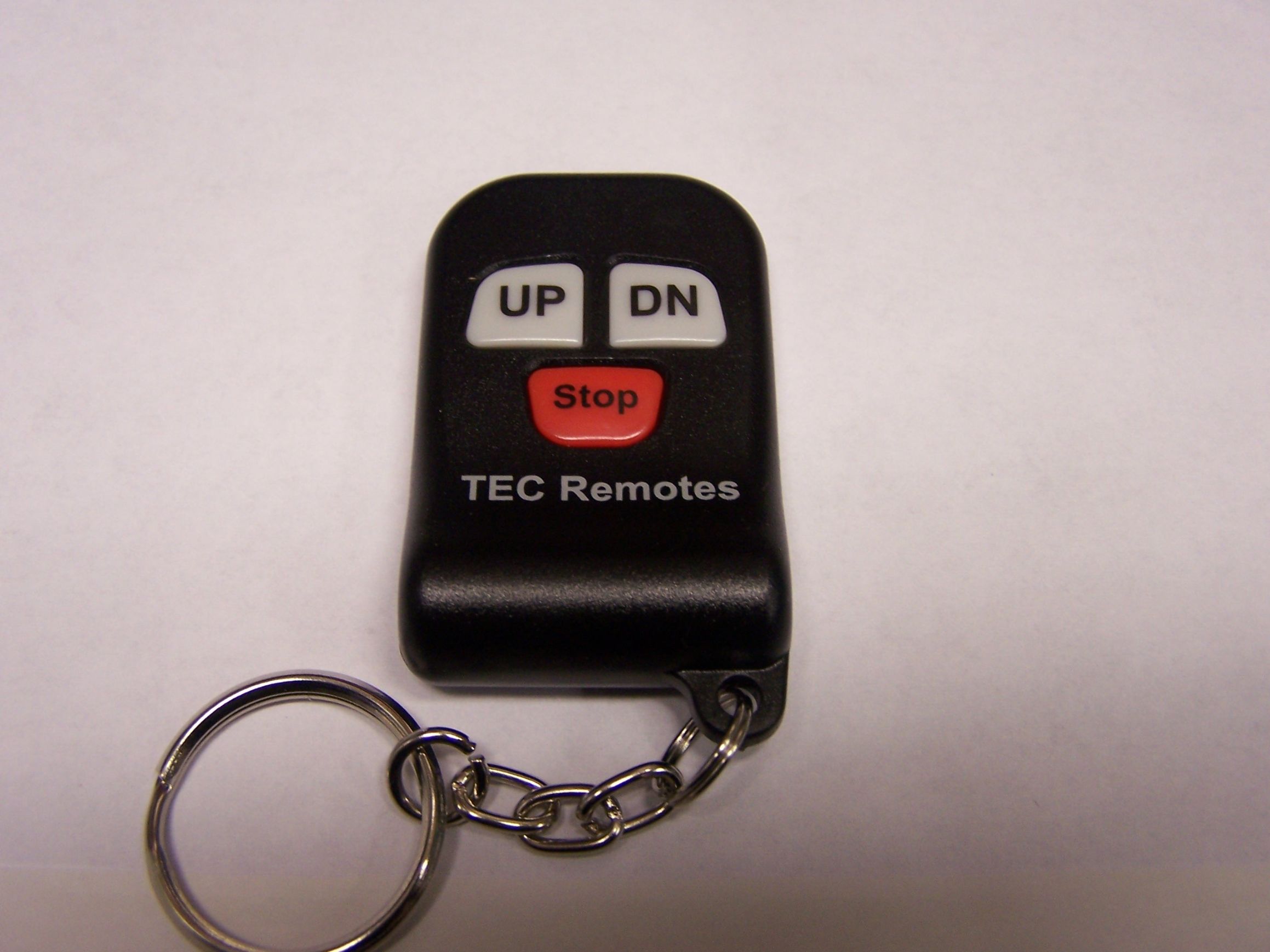

Old Style Two Button Transmitter Programming


Instructions for programming
TEC Two Button Hand Held Transmitter
The receiver is located in the lower right hand corner
of the control enclosure.

Programming

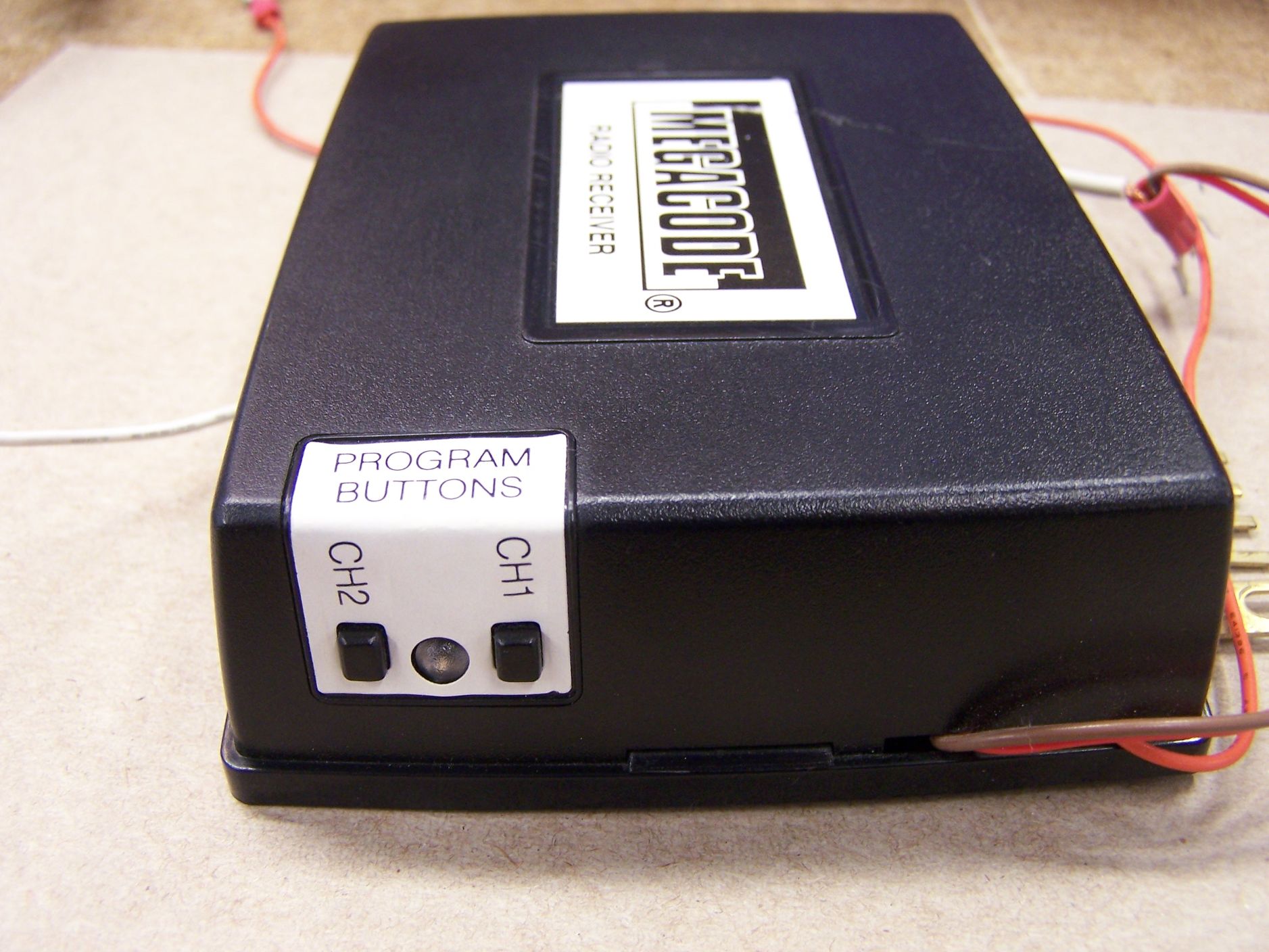

There are two buttons on the receiver marked (CH1) and (CH2)
With the power to the unit turned on;
  1. Press and quickly release the CH2 receiver button.
  2. When the LED light comes on,
    depress the left transmitter button
    (the up button on the hand held unit)
    and hold down for 2 seconds.
  3. The receiver LED light should start Blinking.
  4. Then press and quickly release the CH1 receiver button.
    When the LED Light comes on,
    depress the right transmitter button
    (the down button on the hand held unit)
    and hold for 2 seconds.
  5. The receiver LED light should be blinking.

This completes programming.

_________________________
Code Clearing (If Necessary)
To clear the Radio Receiver of all codes.
With the power turned on and warmed up for 15 seconds
- press and hold the CH 2 button for 25 seconds.
Repeat for CH 1 with the CH 1 button.
Now try the hand held transmitter;
if neither the up or down buttons activate the lift
you have successfully cleared the radio receiver
and can move to the programming instructions above.
If the receiver is not cleared repeat the above again.

===========================================
